Standard Penetration Testing Set

50000.00 - 100000.00 INR/Piece

Get a Price/Quote

Product Details:

Resolution Manual count of blows
Automation Grade Manual
Equipment Type Standard Penetration Test (SPT) Set
Power Supply Hand operated, no electrical supply required
Humidity Ambient conditions
Features Portable, robust construction, complies with IS and ASTM standards
Operating Voltage Not required (manual)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Standard Penetration Testing Set Price And Quantity

Minimum Order Quantity 1 Piece
Price Range 50000.00 - 100000.00 INR/Piece

Standard Penetration Testing Set Product Specifications

Measuring Range 1-100 blows
Application Determination of soil bearing capacity and properties
Test Speed Standard, as per IS 2131 (Typically 30 blows/min)
Specimen Size Borehole diameter: typically 100 mm; Split spoon sampler ID: 35 mm approx.
Power Supply Hand operated, no electrical supply required
Accuracy As per IS 2131, IS:9640, BS:1377
Number of Specimens One test per borehole location
Equipment Type Standard Penetration Test (SPT) Set
Features Portable, robust construction, complies with IS and ASTM standards
Display Type Manual/blow count scale
Mounting Type Tripod-mounted hammer system
Temperature Ambient
Test Range Up to 30 meters depth or as specified
Usage Geotechnical soil investigation, site evaluation
Humidity Ambient conditions
Capacity 63.5 kg hammer
Operating Voltage Not required (manual)
Machine Weight Approx. 75-100 kg (with complete accessories)
Resolution Manual count of blows
Max Height Tripod height approx. 5-6 meters
Test Stroke Standard drop distance: 750 mm (75 cm)
Automation Grade Manual
Control Mode Manual
Response Time Manual, operator dependent

Sampling Depth Up to 30 m or as specified
Drive Rod Diameter 38 mm (1.5 in)
Anvil Type Forged steel
Sampler Type Split Spoon Sampler, standard length 650 mm
Compliance Standard IS 2131, ASTM D1586, BS 1377-9
Drop Hammer Weight 63.5 kg (140 lbs), as per standards
Rope Quality Steel wire rope with pulleys for hammer operation
Test Method Dynamic penetration resistance measurement
Finish Anti-corrosive powder coating
Hammer Drop Mechanism Manual lifting and sudden release by rope
Tripod Material Heavy-duty steel, collapsible
Typical Set Composition Tripod, drop hammer, split spoon sampler, drive rods, rope, anvil, lifting head, guide bush, and accessories
SPT Rods 1 meter and 1.5 meter lengths provided

Standard Penetration Testing Set Trade Information

Supply Ability 100 Piece Per Week
Delivery Time 5-7 Days
Main Domestic Market All India

Product Description

We provide a wide range of Standard Penetration Testing Set. This testing set can be used for measuring the undisturbed strength of the soil. In order to maintain quality and avoid any type of flaw, Standard Penetration Testing Set is tested on various quality parameter before final delivery. We are giving this testing set in number of specifications as per the needs of customers.

Engineered for Field Excellence

Crafted from heavy-duty steel and finished with anti-corrosive powder coating, this Standard Penetration Testing Set offers exceptional durability for demanding site environments. The collapsible tripod and robust components ensure stability during tests, while steel wire rope and pulleys facilitate smooth manual operation of the hammer, supporting reliable results even in challenging terrains.

Comprehensive Geotechnical Application

Designed specifically for determining soil bearing capacity and characteristics, this SPT set is essential for site evaluations, construction projects, and foundation analysis. The set's compliance with IS 2131, ASTM D1586, and BS 1377-9 standards ensures accuracy across various soil investigation tasks, while the split spoon sampler provides undisturbed soil specimens for thorough examination.

Practical, Manual Operation

This equipment operates entirely by manual lifting and release, eliminating the need for an electrical power supply, adapting smoothly to remote or off-grid locations. Its standard 750 mm hammer drop and manually counted blows offer precise control and measurement during dynamic soil testing, suitable for borehole depths up to 30 meters.

FAQ's of Standard Penetration Testing Set:

Q: How is the Standard Penetration Test (SPT) conducted using this set?

A: The SPT is carried out by assembling the tripod and mounting the 63.5 kg hammer system. The split spoon sampler is driven into the soil at the borehole base by repeatedly dropping the hammer from a standard height of 750 mm. The number of blows required to achieve specified penetration depths is counted manually, following IS 2131, ASTM D1586, or BS 1377-9 procedures.

Q: What is the main application of this SPT set?

A: This SPT set is primarily used for geotechnical soil investigations to determine soil bearing capacity and essential properties. It aids engineers and site evaluators in designing foundations and assessing site suitability for construction projects.

Q: When is this equipment preferred over automated testing devices?

A: This manually operated SPT set is ideal when working in areas without electrical supply, such as remote, undeveloped, or off-grid sites. Its portability and independence from power sources make it valuable for a wide range of field conditions commonly encountered in India.

Q: Where can the Standard Penetration Testing Set be effectively utilized?

A: The set is suited for on-site geotechnical investigations at construction locations, infrastructure developments, or any site requiring soil analysis up to 30 meters deep. Its portability allows use across diverse terrains, from urban sites to rural and inaccessible regions.

Q: What are the benefits of using a split spoon sampler in this SPT set?

A: The split spoon sampler allows retrieval of relatively undisturbed soil samples from specified depths, enabling accurate assessment of soil strata, consistency, and characteristics essential for engineering analysis.

Q: How does compliance with IS, ASTM, and BS standards benefit users?

A: Adherence to IS 2131, ASTM D1586, and BS 1377-9 ensures that test results are universally recognized, reliable, and suitable for regulatory and professional engineering requirements across different regions.

Q: What is included in the typical SPT set composition provided by manufacturers and suppliers in India?

A: A standard kit includes a collapsible steel tripod, drop hammer, split spoon sampler, steel drive rods (1 m and 1.5 m), forged steel anvil, lifting head, guide bush, steel wire rope with pulleys, and necessary accessories for field soil testing.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Soil Testing Equipment' category

Static Cone Penetration Test Equipment Price Range : 50000.00 - 100000.00 INR/Piece Minimum Order Quantity : 1 Usage : Field Soil Testing Resolution : 0.1 kN Test Stroke : 600 mm Automation Grade : Manual Control Mode : Manual & Hydraulic Test Speed : 2 cm/min Equipment Type : Static Cone Penetration Test Equipment Power Supply : 230 V, 50 Hz, Single Phase AC Features : Portable, Rugged Construction, Simple Operation Humidity : Up to 90% RH (noncondensing) Capacity : 30 kN Machine Weight : Approx. 180 Kg Max Height : 1.2 m Port Size : Standard Response Time : Instantaneous Application : Soil Investigation, Geotechnical site testing Measuring Range : 0 30 kN Accuracy : 1% Number of Specimens : 1 at a time Specimen Size : 36 mm (Cone Diameter) Mounting Type : Portable/OnSite Temperature : 10C to 50C Test Range : Up to 3000 kgf Frequency : 50 Hz Operating Voltage : 230 V AC Interface Type : Manual Display Type : Analog/Dial Gauge

Send Inquiry

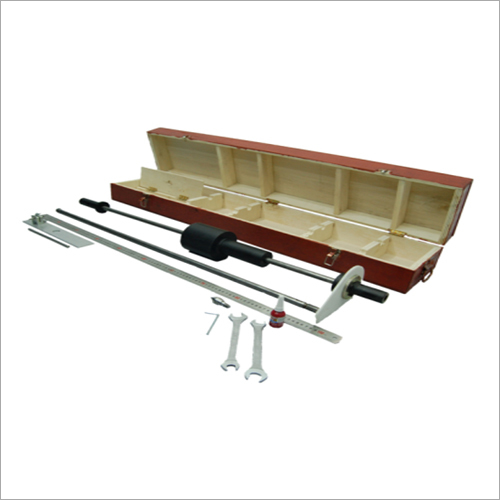

Dynamic Cone Penetration Test Equipment Price Range : 50000.00 - 100000.00 INR/Piece Minimum Order Quantity : 1 Usage : Determination of soil strength (CBR, bearing capacity) Resolution : 1 mm Test Stroke : Standard Drop Height: 575 mm Automation Grade : Manual Control Mode : Manual with Drop Hammer Test Speed : Manual Operation (Dynamic impact) Equipment Type : Dynamic Cone Penetration Test Equipment Power Supply : Not Required (Manual) Features : Portable, Rugged, Easy Assembly, Field Use Humidity : 0 95% RH (Operating) Capacity : 50 kN max impact force Machine Weight : Approx. 60 kg (including all component parts) Max Height : Approx. 2.5 meters (assembled rods) Port Size : Threaded coupling for extension rods Response Time : Immediate (manual reading) Application : Soil penetration resistance testing, subgrade evaluation Measuring Range : 0 10,000 mm (penetration depth) Accuracy : 2 mm penetration depth Number of Specimens : Single test per procedure Specimen Size : Standard 20 mm/16 mm cone Mounting Type : Portableno mounting required Temperature : 10C to +50C Test Range : Up to 10 meters penetration (with rods and cone) Frequency : Depends on operator (typically 12 drops/sec) Interface Type : Manual scale/visual Display Type : Graduated scale for depth reading Hardness : Cone: Hardened steel, Rockwell C > 50
